Details about  Bus Pirate Universal Interface With Test Cable&Housing

Bus Pirate Universal Interface With Test Cable&Housing See original listing
Bus-Pirate-Universal-Interface-With-Test-Cable-Housing
Item Ended
Item condition:
New
Ended:
24 Oct, 2013 12:12:25 BST
Price:
US $29.95
[
History:
]

Approximately £17.82
Postage:
Free Economy Int'l Shipping | See details
International items may be subject to customs processing and additional charges.  help icon for delivery - opens a layer
Item location:
Shenzhen, China

Description

eBay item number:
170580280916
Seller assumes all responsibility for this listing.
Last updated on  10 Nov, 2012 12:43:24 GMT  View all revisions

Item specifics

Condition:
New: A brand-new, unused, unopened and undamaged item in original retail packaging (where packaging is ... Read moreabout the condition


Product Images


Product Description

The "Bus Pirate", designed by Dangerous Prototypes,  is a universal bus interface that talks to most chips from a PC serial terminal,  eliminating a ton of early prototyping effort when working with new or unknown chips.  Many serial protocols are supported at 0-5.5volts, more can be added.

  • 1-Wire
  • I2C
  • SPI
  • JTAG
  • Asynchronous serial
  • MIDI
  • PC keyboard
  • HD44780 LCD
  • 2- and 3-wire libraries with bitwise pin control
  • Scriptable binary bitbang, 1-Wire, I2C, SPI, and UART modes

There are some other features, like:

  • 0-6volt measurement probe
  • 1Hz-40MHz frequency measurement
  • 1kHz - 4MHz pulse-width modulator, frequency generator
  • On-board multi-voltage pull-up resistors
  • On-board 3.3volt and 5volt power supplies with software reset
  • Macros for common operations
  • Bus traffic sniffers (SPI, I2C)
  • A bootloader for easy firmware updates
  • Transparent USB->serial mode
  • 10Hz-1MHz SUMP compatible low-speed logic analyzer
  • AVR STK500 v2 programmer clone
  • Supported in AVRDude programmer
  • Scriptable from Perl, Python, etc.
  • Translations (currently Spanish and Italian)

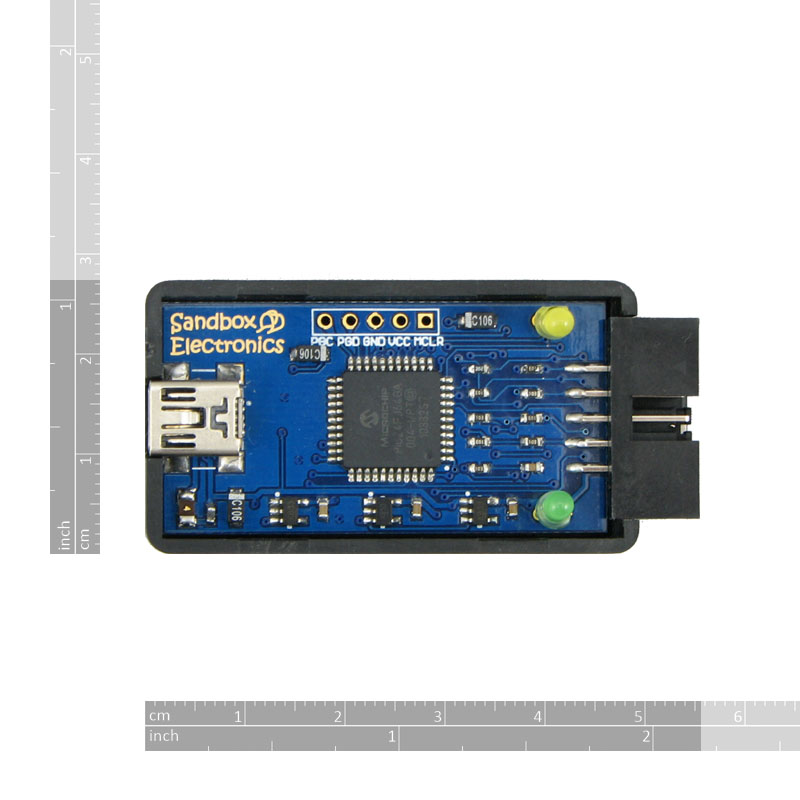

The hardware is functionally identical with the official v3b:

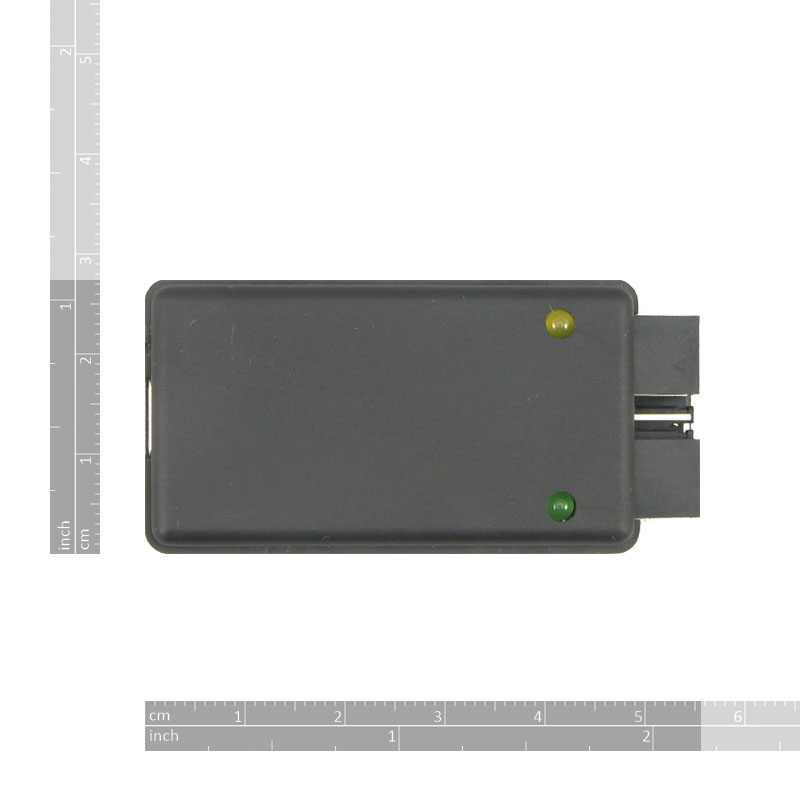

  1. Power LED and Rx LED are removed, which results two LEDs left on board. The green one is for onboard power regulator and the yellow one is for MODE indication.
  2. A resettable fuse is added to the design, which could protect the USB port of your PC if short circuit occurs.

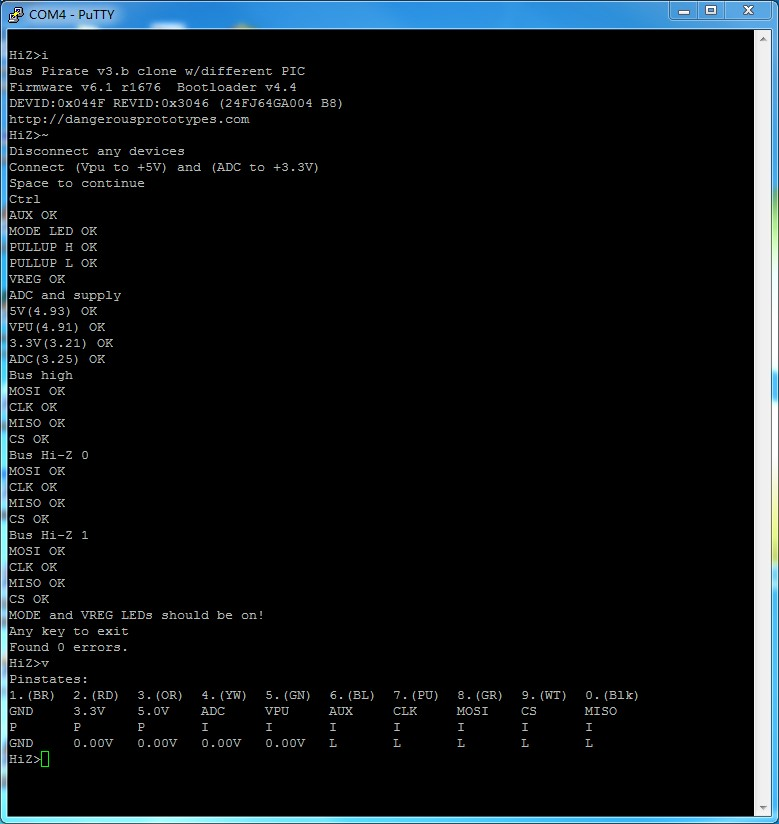

  3. Cable color pattern is the same as the official version. You don't need to remember the pinout of the cable. Simply use the "v" command at any time to learn the functions of wires in current mode, as shown in the terminal screenshot above.
  4. The USB to serial converter chip in this design is PL2303HX.

In the Package

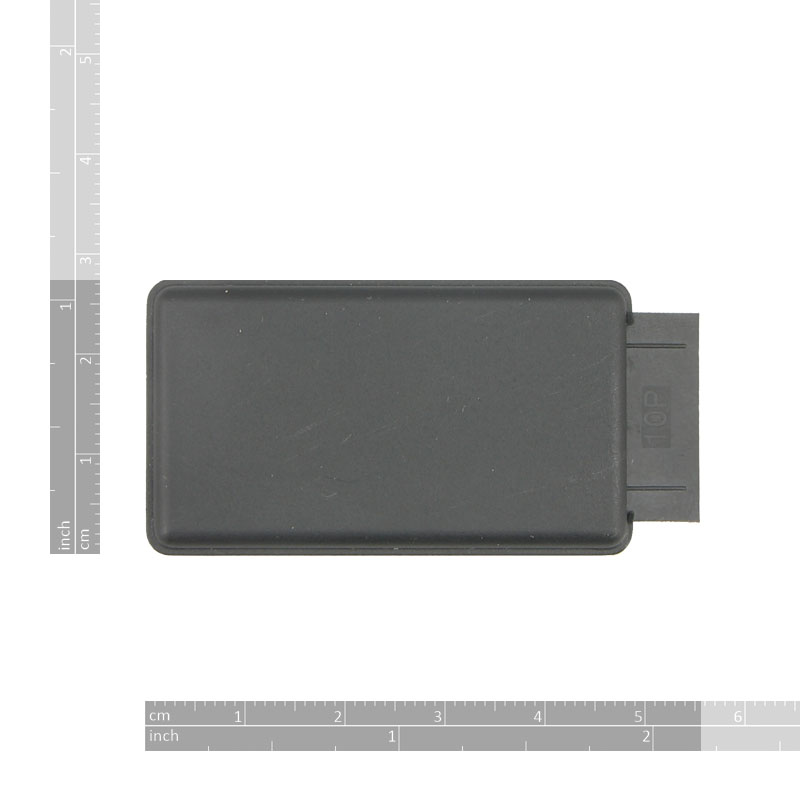

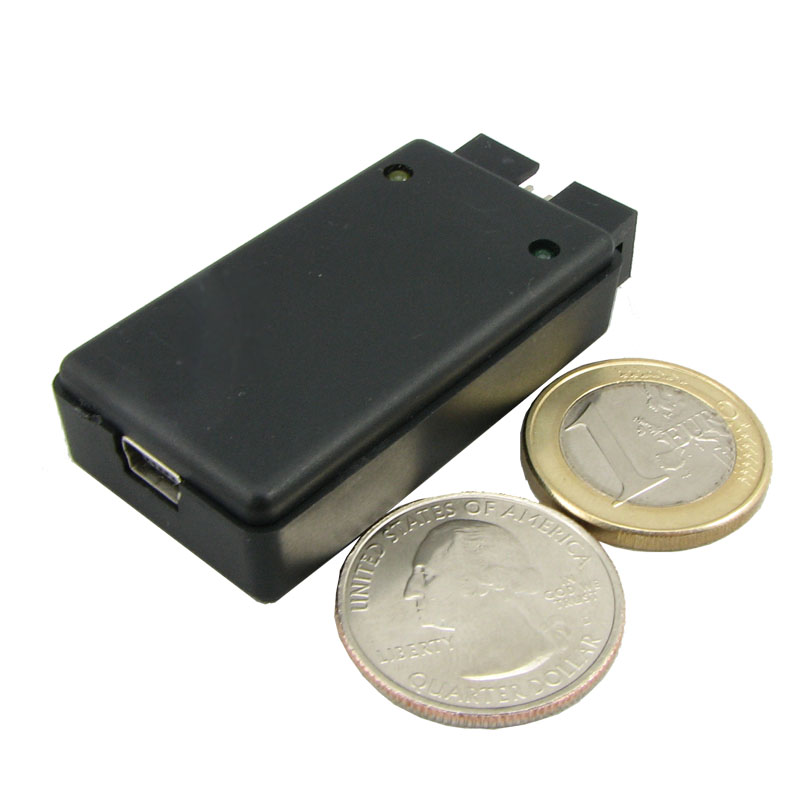

  1. A fully tested and assembled Bus Pirate board (including a plastic enclosure) with the latest bootloader (v4.4) and firmware (v6.1).

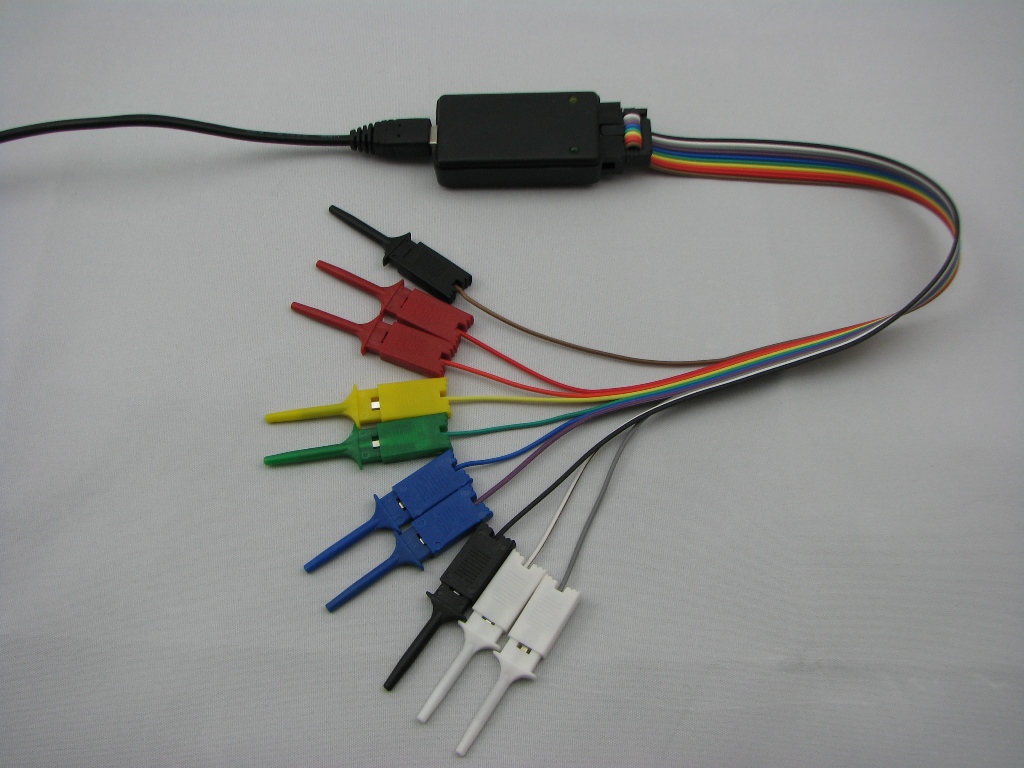

  2. A 10-pin rainbow test cable with probes.
  3. A 1.0m USB mini cable.

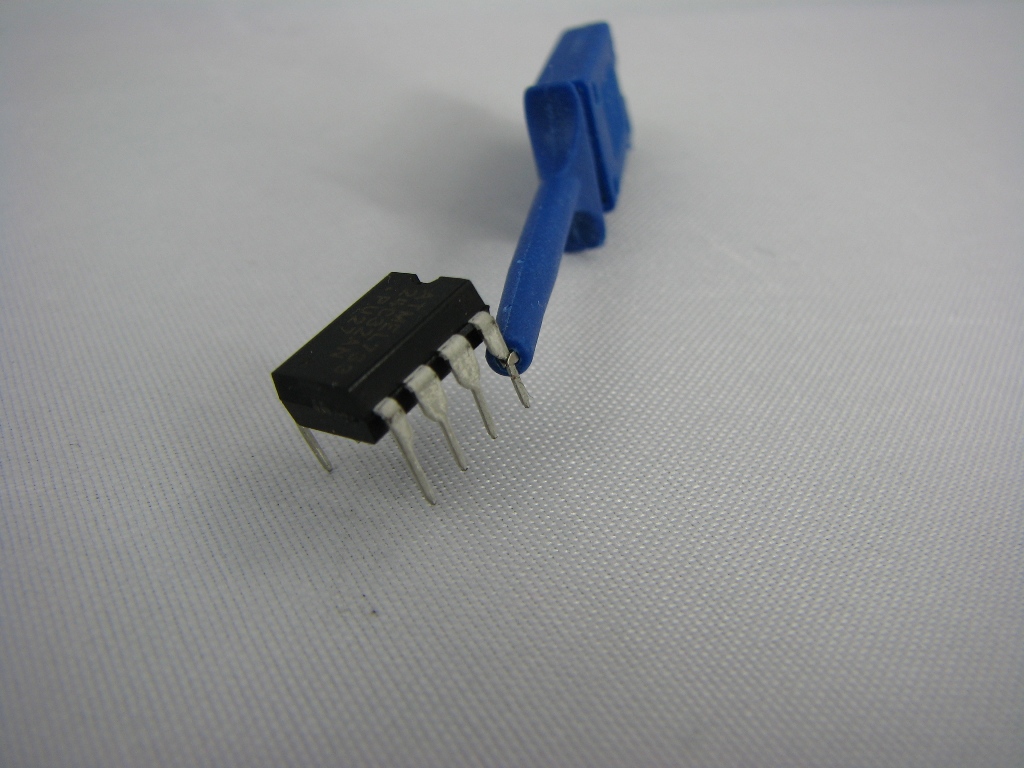

  4. 12 additional probes in 6 different colors.

Resources

Payment

  • We accept PayPal ONLY.

Shipping Policy

  • Your goods will be shipped within 3 days after cleared PayPal payment.

  • If the total amount is less than $25, your goods will be shipped via airmails (i.e. HongKong Airmail or China Post Airmail). If you would like to use trackable airmail, please leave a message when making the payment via PayPal. We will send you another PayPal invoice of $2 for the extra trackable airmail expense.

  • If the total amount is more than $25, your goods will be shipped via trackable airmail (i.e. HongKong Registered Airmail or China Post Registered Airmail).

  • Expedited shipping services (e.g. DHL, FedEx, UPS) are available. Please contact us via eBay messages for pricing.

  • Your goods will ONLY be shipped to your PayPal address. Before you place an order/bid, please edit/add your PayPal address if it is not correct.

  • If by any chance that your goods is held by the Customs, it is the buyer's responsibility to clear the Customs. The Customs office may be far away from your location. Please take that into consideration.

  • By default, we declare the real value to the Customs. If you have any requirement on declaration, please leave a message when making the payment via PayPal.

Destination Country Shipping time statistics via HongKong Airmail
  5-10 days 11-15 days 16-20 days 21-25 days 26-30 days more than 30 days
United States 5.9% 49.3% 30.2% 9.7% 4.9% Full refund or Reshipping[1]
United Kingdom 10.2% 62.9% 18.7% 3.7% 4.5%
Australia/Ireland 11.6% 59.8% 14.0% 7.5% 7.1%
France/Netherlands 5.3% 28.7% 48.9% 9.9% 7.2%
Germany/Italy/Israel 8.2% 22.5% 32.7% 20.9% 15.7%
Canada/Portugal 0.0% 38.2% 40.2% 17.5% 4.1%
Spain/Greece/Finland 3.5% 25.2% 47.7% 12.8% 10.8%
Brazil/Russia 0.0% 12.6% 19.1% 17.5% 31.2% Check the note below[2]
[1] If the item(s) is not received within 30 days, the buyer could choose between receiving full refund or reshipment.
[2] Brazilian and Russian buyers might experience longer delay in some case. The buyer could choose between receiving full refund and reshipment if the item(s) is not received within 45 days.

Return and Warranty

  • 100% full money back for DOA.
  • 100% full money back if your goods is lost.
  • 7 days full money back. The buyer has to send the goods back and pay for the shipment.

Foot note

  • We are not good at Photoshop. But we do have a camera.
