CNC Kit 3 Axis Stepper Motor Driver Nema17 12V10A 220V

Hi, you are bidding a GREAT VALUE 3 AIXS CNC PC CONTROL COMPLETE KIT !

Package includes:

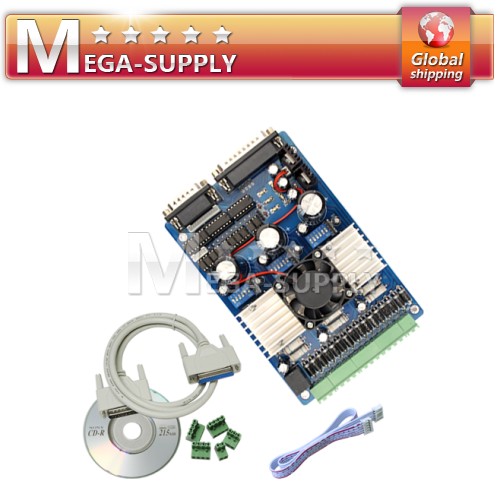

  • 1 x New 3 Axis TB6560 Driver Controller Board 1/16Microstep, 12-36V, 1.5A-3A
  • 3 x New 42BYGH47-401A Single-Shaft Stepper Motors 0.44 Nm/62 Oz-in/1.68A
  • 1 x New 12V 10A power supply



Product Features:
  • Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset !
    For TB6560AHQ Datasheet, Please click here.
  • 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
  • Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
  • Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment !
  • On board current switching - Power output can be set according to specific user requirement !
  • Full closed-type optical isolation to protect the user's computer and equipment
  • Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
  • 4 channel inputs interface- Can be used for XYZ limit and emergency stop !
  • Professional design - Two stage signal processing with super anti-jamming !
  • Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect !
  • Four-input Control; Allow setting the Limit, Emergence-Stop, Midpoint-Alignment, Cutter-Alignment!
  • Universal architecture - Supports most parallel software MACH3,KCAM4 etc!
    *For compatibility with other softwares, please feel free to contact us!
  Dip settings:

Current Setting 1 2 Decay Mode Settings 3 4 MicroStep Settings 5 6
100% ON ON FAST ON ON 1 ON ON
75% ON OFF 25% ON OFF 1/2 ON OFF
50% OFF ON 50% OFF ON 1/8 OFF ON
25% OFF OFF SLOW OFF OFF 1/16 OFF OFF

 Further Details:

  • Power supply DC 12-36V
    *This stepper motor directly gets the power from the stepper driving controller board, it doesn't require a separate power source.
    *Voltage Selection:
    12-16V DC power supply for Nema 17 stepper motors
    16-24V DC power supply for Nema 23 stepper motors
    24-36V DC power supply for Nema 34 stepper motors
    (High voltage will burn up the chips or stepper motors!!!)
    *Ampere Selection:
    Output current of the power supply can be calculated by the following expressions:
    Output current = Rated current of your stepper motors * quantity + 2A
    (For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.
    If you are not sure about the selection of power supply, please feel free to contact us for help)
  • The power output of 12V shall be applied to the radiator fan of 12V
  • Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
  • Suitable for unipolar or bipolar stepper motors.
  • Spindle speed controlled by the voltage from the parallel interface.
*NOTE: Please SHUT DOWN the power before you plug or unplug the connectors to avoid burning up the board.

 Connection Diagram:

 *NOTE: These external tools on the left and bottom of the following picture are only for exhibition, we don't have them to sell at the moment!

Electrical properties (ambient temperature Tj = 25 ℃ pm)：

Input Power

12-36V DC power supply

Stepper motor drive current

1.5A - 3A/phase

Drive type

Double-pole constant flow PWM actuation output

Compatible Stepper motors

2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.

Data Sheet for 42BYGH47-401A Stepper Motor

* If you need other models, Please feel free to contact us!
