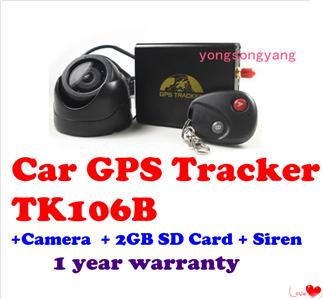

GPS/GPRS/GSM/SMS tracker TK106B Specially for
high-end use on vehicles 12-24V
Support shock sensor,Cameras,remote control
Cell ID ,SD card record blind area data
Fuel/Oil Level Alarm , listening in,
Engine cut/resume remotely
description:
High sensitive SIRFIII Star GPS Chipset and advanced multi-band GSM module
GPS/GSM/GPRS/SMS connection
Remote control via mobile phone or computer
Fast signal acquisition
Excellent locating capability under weak signal enviroment
Locate single waypoint or track continuously
Locate at preset time interval or real time
Living tracking on map
Send SOS message for emergency rescue
Send low power notification when battery will die out
Send over speed alarm when vehicle moves over restricted speed
Send geo-fence alarm when vehicle exits or enters restricted area
Cut off oil and power system remotely by SMS or website
Resume oil and power system remotely by SMS or website
With shock sensor
With remote control
With Siren
power off alarm
Reset by SMS
Check IMEI
Change time zone to correct time
Listening in
Fuel Alarm by SMS
Arm,disarm ,silent mode
Door alarm ,ACC alarm
Location base station (LBS/Cell ID)
When the tracker device doesn’t received valid GPS signals, tracker will positioning by GSM base station, the messages includes the GPS coordinates of the last position, but the LAC in message is the current new position, you can also send command “address+password” to tracker to get the newest absolute address and GPS coordinates as well
tracker will automatically switch to track by GSM base station in GPRS mode, and actualized on the map of web server with LBS mark. And there may be some inaccuracy with actual location by LBS tracking; the bias depends on GSM reception.
Absolute address with street name
You must set up the APN of your local GSM network for the SIM card in tracker first before using this function, if there is user name and password for GPRS login, Please refer to 6.31 and 6.32 to configure the APN, user name and password for GPRS login.
After configure the APN, send “address+password” to device, it will reply SMS including real street/address name. For example: No.8, Nantou Guankou 2nd Rd. Nanshan district, Shenzhen, Guangdong, china
Photograph by Camera
When the tracker terminal device detects DOOR/ ACC / SOS / alarm, the tracker device will be automatically ready for photograph when sending the alarm and then shoot camera to upload the photo to the monitoring platform(web server), The photo can be also requested by click menu “request photo” on the platform.
Alarms in GSM Blind Area
When vehicle enters GSM blind areas, the siren will sound in Non quite mode if DOOR/SHOCK SENSOR/ACC, OIL alarms are triggered, and these alarms will be stored and send to authorized numbers or web server after GSM signal recover.
Check the Vehicle State
Send SMS command “check+password” to the tracker device in the vehicle, It will reply the status of external power, battery, GPS, ACC, door, GSM reception and oil consumption to the authorized numbers.
For example: Send SMS “check123456” to the tracker device in the vehicle, it will reply following SMS after executed the command.
Power: ON/OFF
Battery: 100%
GPS: OK/NO GPS
ACC: OFF/NO
Door: OFF/NO
GSM Signal: (1-32) the higher digit it shows; the stronger of GSM reception it receives.
Oil:100.00%
Manufacturer Specifications
GPS Chip: SIRF III chip
Color: Black
Network: GSM/GPRS
GSM Frequency: 850 / 900 / 1800 / 1900
GSM/GPRS Module: Simcom900B
GPS Sensitivity: -159dBm
GPS Accuracy: 5m
-GPS Start Time:
-Cold Status: 45s
Warm Status: 35s
-Hot status: 1s
Applicable vehicle power 12 V -24V
Backup Battery: Chargeable 3.7V 800mAh Li-ion Rechargeable Battery
Storage Temperature: -40°C to +85°C
Operation Temperature: -20°C to +65°C
Humidity : 5%--95% non-condensing
Dimension:
-Gps tracker: 101 (L) x 72 (W) x 26 (H) mm
-Camera: 70 (L) x 70(W) x 53 (H) mm
Very Easy to install with diagram picture
Check position on google maps
Support the following real-time tracking methods:
cellphone link: support Google maps which is more clear than former type for wxlxy.com
Track on our tracking website :support English,Portuguese,Spanish ,Thai languages etc
Package include :
GPS Car Tracker
GPS Antenna
GSM Antenna
Microphone
Harness
Relay
Remote control
Camera
CD
Paper User Manual -English
2 GB Micro SD card
Shake sensor
Siren
International Buyers – Please Note:
- Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
- Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
FAQS ,please take attention on it before you bid
Q:If I can use this tracker without a sim card ?
A:This tracker is a combination of current GSM network and GPS positioning. A suitable simcard is a FIRST NECESSITY to make it work. These 2 CANNOT work seperately
Q:Where can I find a suitable sim card to make it work ?
A:As mentioned above, a suitable simcard is required to make it work. But when you choose the simcard, you need to be CAREFUL in order not to waste money. The simcard should be a GSM network based ( ONLY GSM ). The tracker now CANNOT support 3G in theory. Why in theory? According to our selling experience, in some countries such as AU, US, UK, etc, there are ONLY 3G simcard can be found now. But the tracker CAN still perform normally with such 3G simcard, that is because these 3G simcard can support or compatible with a lower generation like 2G or 2.5G, which is enough to make the tracker work. When you choose the simcard, PLEASE DO CONFIRM this with your local simcard provider.
Q:I can not make it work , is there any technology support ?
A:Yes , we are professional supplier on ebay , and we also has many engineers can provide you the best service , but before you find the help , we really recommend you read our user guide carefully , it is very clear , and then if there is any query , please contact us via email , MSN , or Skype , we will be help you test it step by step
)
