PICcircuit

Visit my eBay Shop  PICcircuit


usbStick is built with a simple set of external ports connection that fulfilled any type connector. With these IO ports, user can easily plug in different type of IO modules with direct conntection to USB port.



The features of iCP12 are listed as followings:

  • Mini size, easy interfacing, high performance and user friendly device
  • Used with PIC18F2550 28-Pin Flash USB PIC MCU
  • Excellent flexibility that allows user to expand the board with plug and play modules



Peripheral Features:

  • 13x IO Port (6x 10bit ADC pins)
  • Maximum Voltage: 5Vdc
  • 100mA current output at VDD pin with over-current protection
  • 20MHz oscillator
  • Green LED - power on indicator
  • 2x LEDs (Green, Red) - status indicator
  • ICSP Connector - on-board PIC programming
  • Switch Mode Selection - Boot or Normal mode



Dimension:

  • Dimension: 7.0cm X 2.3cm X 0.5cm (H)
  • Standard 1x5 2.54mm Pin Socket for ICSP connection
  • Standard 4x6 2.54mm Pin Socket for IO Port connection



Remarks:

  • Overvoltage or overcurrent may damage the MCU. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

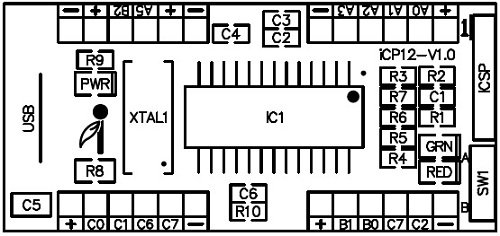

Layout:




Accessories List: (These accessories would be shipped together)

  • 28 Pin PIC: PIC18F2550
  • Preloaded Firmware: HID Bootloader + iCP12 DAQv1.1 Firmware
  • iCP12 firmware can be updated using Microchip USB HID Bootloader via USB port
  • NO programmer is required!



Firmware Upgrade:

  • First, switch the SW1 to 'A' for bootloader mode and connect it to USB port
  • Then program the iCP12 with provided firmware (iCP12_xx_Firmware.hex) file
   Microchip USB HID Bootloader
  • Disconnect the iCP12 and switch back the SW1 to 'B' for normal operation



Photos:

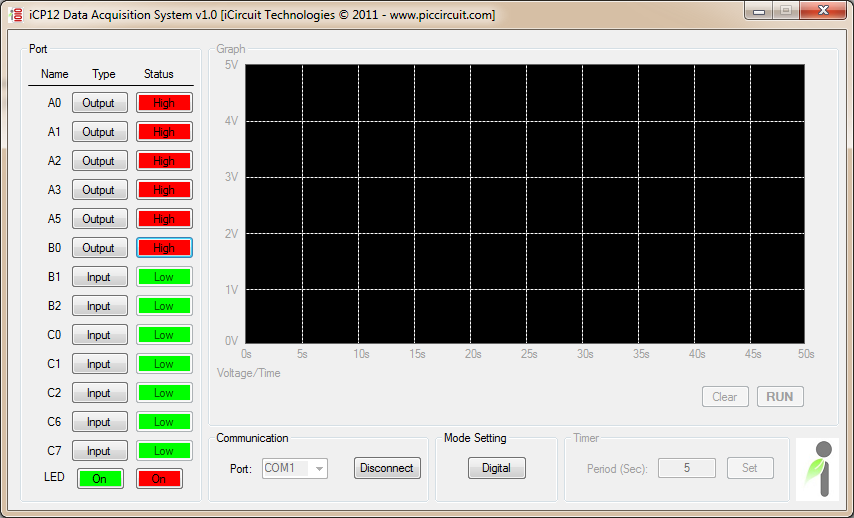

  • with 'SmartDAQ - Digital Mode'
iCP12 Data Acquisition System v1.0

  • with 'SmartDAQ - Analog Mode'
iCP12 Data Acquisition System v1.0

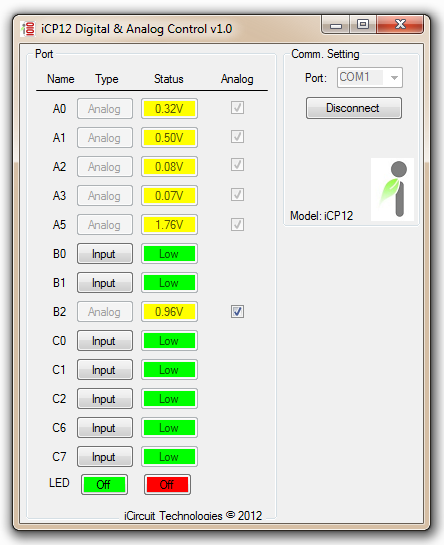

  • with 'ioControl'



Download:



Software:

  • Software 01 - ioControl (Free ioControl VB2008 Source Code): Link (Please Contact Us to get the Source Code)
  • Software 03 - SmartDAQ: Link



Shipment

  • Registered Air Mail (Delivery time is 7-21 business days). Tracking code will be provided.
  • We ship within two business day after payment received.
  • We will ship to the Paypal shipping address you entered during checkout process, rather than your Ebay shipping address.
  • We Ship to Worldwide, except China, Somalia, Lubnan and Israel.

Payment

  • Payment method: We only accept PayPal
  • Please request total for combined orders.

Other Policies

  • We are not responsible for any custom duty or import tax. These charges are the buyer's responsibility.
  • We will leave POSITIVE FEEDBACK after receive the full payment.
  • Please contact us if you are not satisfied with the item when you receive it.
  • Serious Buyer Only! Please place bid only if you agree with all the terms.

Warranty

  • Only MANUFACTURING defective product will be offered exchange or store credit.
  • Damage caused by any misuse of product is not covered under warranty.

Contact Us

  • Please read our policy and product description before your purchase. We will explain it in detail and satisfy your needs.
  • Feel free to contact us! Email: support@piccircuit.com
  • For more information or Bulk Order, please visit www.piccircuit.com
