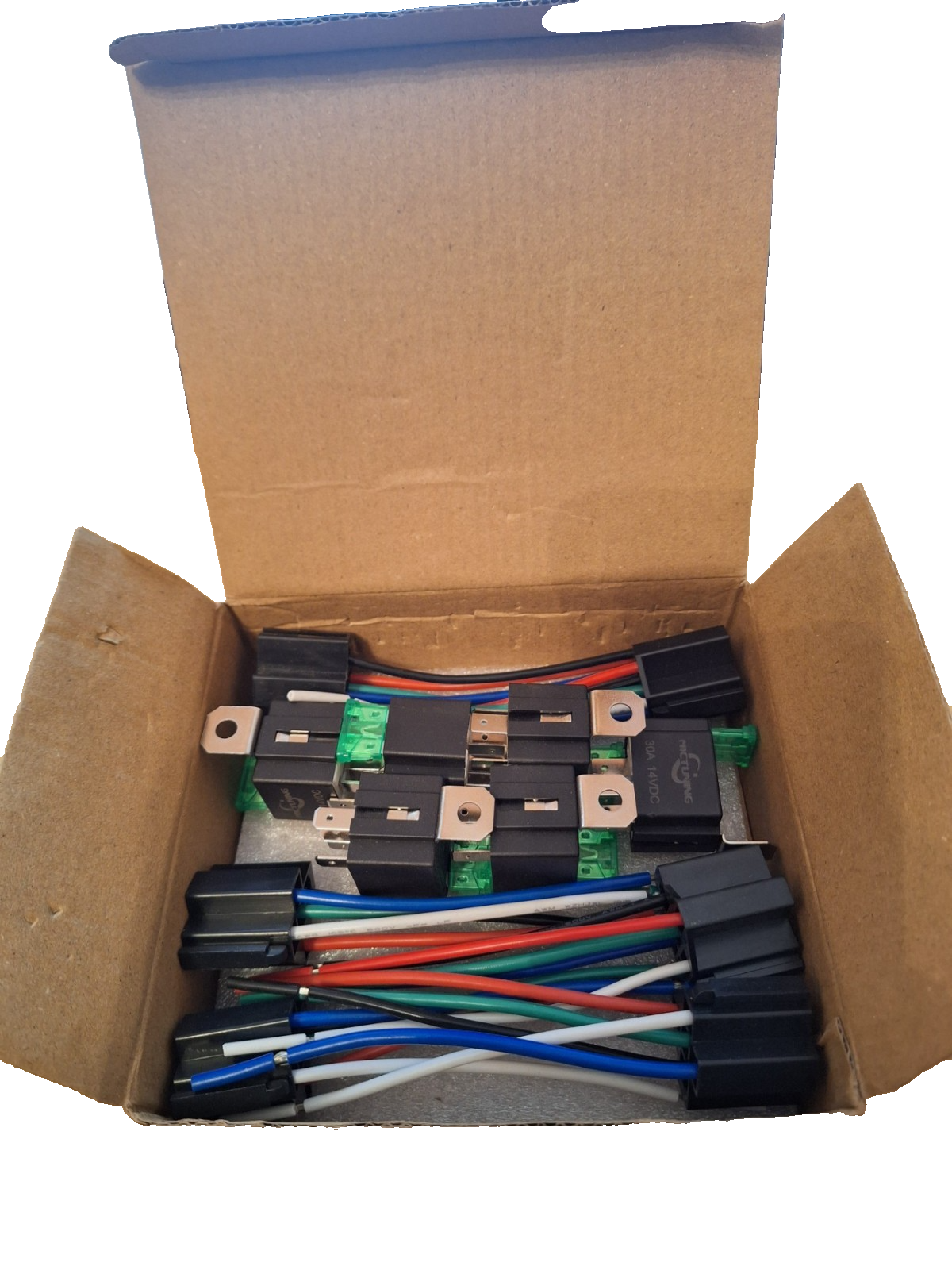

5 Pin Fuse Relay Switch Harness Set Universal Bosch SPDT 14awg 30a 12v 6 Pcs
Price:
£15.67
Free postage
Returns:
14 days return. Buyer pays for return postage. If you use an eBay delivery label, it will be deducted from your refund amount.
Condition:
Instruction of Relays and Harness Sockets: -85: Connected to the ground chassis. Serves as the common ground connection to activate and magnetize the internal coil. -86: Connected to a positive 12V DC input. This is where a switch connected to 12V DC input will be connected to on the relay. When power is sent to the relay through pin 86, the circuit is completed with pin 85 connected to a common ground, which activates and magnetizes the internal coil. -87: Normally open contact, also known as NO.The connection between pin 87 and pin 30 is only made when the internal coil is activated or magnetized. -30: Common contact which can be connected to a 12V DC power input or to the ground chassis depending on the desired application.
- Buy it now6 Pcs 5 Pin Fuse Relay Switch Harness KitSet Universal SPDT 14AWG 30A 12V Car
Oops! Looks like we're having trouble connecting to our server.
Refresh your browser window to try again.
About this product
Product Identifiers
BrandMictuning
MPNMICFRH151
eBay Product ID (ePID)28023581744
Product Key Features
Amperage30 A
Performance PartNo
Terminal TypeBlade, Pin, Plug
Reference OE/OEM Number30 amps, 21-30 V
Universal FitmentYes
Connector TypeMale
Number of Contacts6
Mounting StylePlug-In
Dimensions1.45 x 0.45 x 1.35 cm; 40 g
Classic PartNo
Dimensions
Weight40 g
HeightDC
All listings for this product
Ratings and reviews
Most relevant reviews
- 12 Nov, 2024
The relays are good, the fuse holder on ...
The relays are good, the fuse holder on the relay is not great and leaves the fuse exposed and unsupported and easily bent. The blades of the fuse and the electrical contacts are exposed to the elements, so I wonder how it will fare after a while under the bonnet.Verified purchase: YesCondition: New
- 28 Jul, 2020
Seem to be very good...
SEEM to be excellent - yet to use any of them, however, the quality looks to be excellent so the value for money is also excellent.Verified purchase: YesCondition: New
- 23 Jun, 2023
Great quality relays
These 12 volt relays are of good quality, complete with a fuse are a great for additional circuits. A good supplier will use againVerified purchase: YesCondition: New
- 15 Dec, 2021
A must have electrical
Extremely useful and safe way to add electrical ancillaries to your car's system. Relay and fuse together can be located conveniently for inspection or fuse replacement etc.Verified purchase: YesCondition: New
- 28 Apr, 2021
Like the separate fuses,
Only wired up but not tested, looks good and I expect it to be OK, need another lot so once I have tested this lot out I shall probably buy another 6.Verified purchase: YesCondition: New
- 24 Nov, 2024
Can't see how the relays are meant to fa...
Can't see how the relays are meant to fasten together but since I don't need that facility, I am quire happy with them.Verified purchase: YesCondition: New
- 20 Dec, 2023
well made and fit together easily
very good value appears well made ideal or classic vehicle headlightsVerified purchase: YesCondition: New
- 23 Apr, 2020
Good product good value
Good valueVerified purchase: YesCondition: New
- 17 Feb, 2021
Relays
Excellent items with harness great quality not cheap rubishVerified purchase: YesCondition: New
- 22 Apr, 2020
Good product good price
Goodall round thanksVerified purchase: YesCondition: New
